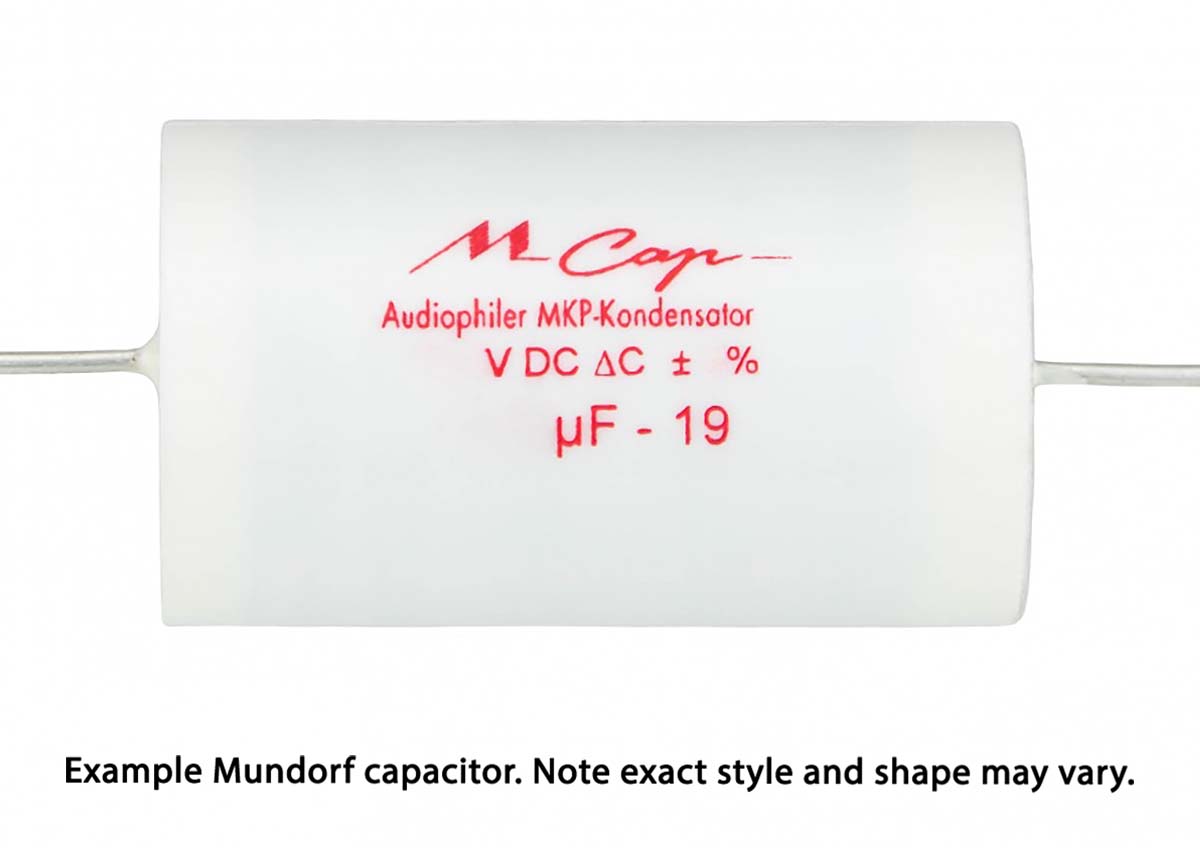

Mundorf MCap Classic Capacitors



Mundorf M-Cap capacitors.The M-Cap is an audiophile metallised polypropylene capacitor. In selection of the materials used, special attention was given to the sound properties. Great care taken during the production guarantees constant high quality and minimum electrical and mechanical tolerances. The practically induction-free type of construction and the low loss factor of the M-Cap results in a very "quick" capacitor. The M-Cap forms the basis for vivid music reproduction rich in nuance.

The 630V DC versions are equally suitable as a bypass capacitor in high quality frequency crossovers or as a coupling capacitance in valve and transistor amplifiers.

Specifications:

  • Capacitance range: 0.01 - 330 µF
  • Voltage rating: 250 / 400 / 630 VDC (Not all voltages available for all values)
  • Film: Metallised Polypropylene
  • Tolerance: ± 3% or ± 5%
  • Loss factor: tan d = 0.0002 (for 1 kHz / 1 µF)

Dimensions:

Mundorf M-Cap capacitor dimensions - refer to table below.
Mundorf M-Cap capacitor dimensions - refer to details below.
